PPR-AL-PPR Pipe

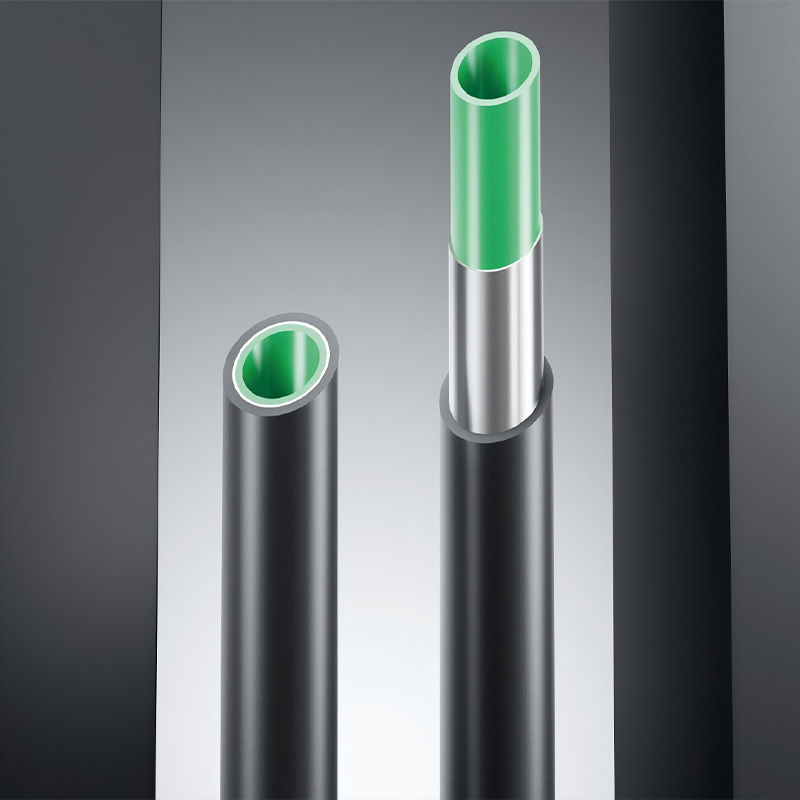

PPR-AL-PPR Pipe is a high-performance composite pipe series under POLYGON GERMANY's integrated plastic pipe system. It features a three-layer structure with an aluminum layer sandwiched between two PPR layers. The system is fully compatible with the brand's PPR fittings, valves, and installation tools, forming a complete, reliable fluid conveyance solution. It adheres to international quality standards and holds authoritative certifications including CE, ISO 9001, ISO 14001, AENOR, DVGW, SKZ, and GREEN BUILDING.

Specification

• Structure: Three-layer composite (PPR-Aluminum-PPR), with a middle aluminum layer ensuring structural stability and functional enhancement.

• Raw Material: High-quality PPR raw materials from Borealis and South Korea's Hyosung, combined with high-performance aluminum layer materials.

3

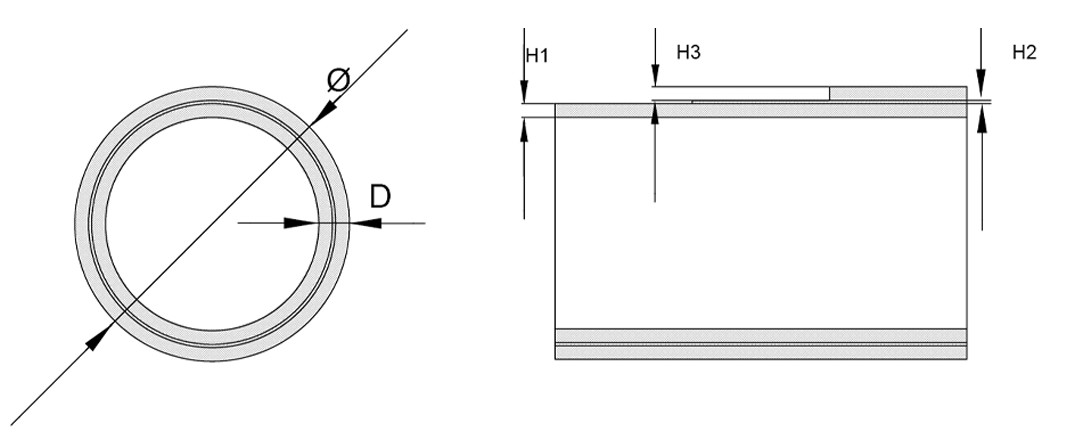

S SeriesDNФDH1H2H3
S2.52020+0.33.4+0.5≥1.0≥0.23≥1.0
S2.52525+0.34.2+0.6≥1.2≥0.23≥1.2
S2.53232+0.35.4+0.7≥1.5≥0.28≥1.5
S2.54040+0.46.7+0.8≥1.9≥0.33≥1.9
S2.55050+0.58.3+1.0≥2.3≥0.47≥2.3
S2.56060+0.610.5+1.2≥3.0≥0.57≥3.0


Advantage

• Three-layer structure: PPR-AL-PPR Pipe has aluminum layer in the middle, which make it can work under higher pressure. The metal layer can be easily detected, makes it easily to be maintained.


• Excellent heat conductivity: Low thermal conductivity for energy-efficient insulation, delivering a cost-effective performance.


• Outstanding material properties: The aluminum layer can block oxygen and sunlight to prevent the oxidative corrosion in pipe-connected equipments.


Application

• High-Pressure Water Supply Systems: Suitable for high-rise residential buildings, commercial complexes, and industrial parks, withstanding higher water pressure to ensure stable water supply.

• HVAC Circulation Systems: Ideal for hot and cold water circulation pipelines in heating and air conditioning systems, thanks to low thermal conductivity and energy-efficient insulation.

• Public Infrastructure Pipelines: Used in water supply pipelines of hospitals, schools, and public transportation hubs, ensuring long-term stable operation and easy maintenance.

• Solar Water Heater Connection Pipelines: Compatible with solar water heater systems, resisting pressure changes and temperature fluctuations while maintaining thermal insulation performance.
